| Brand Name : | YAHEA |
| Model Number : | YH-PA |
| Certification : | As You Required |
| Price : | Negotiation |
| Payment Terms : | Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 800000㎡ Per Month |
| Delivery Time : | 5-8 working |

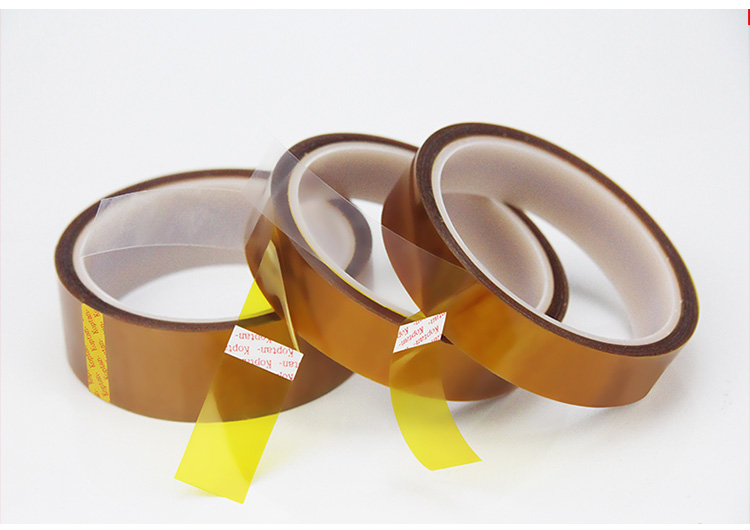

0.06mm heat resistant kapton polyimide self adhesive tape for LCD, LED, PDP protection
Product introduction
Polyimide Tape is a polyimide film- backed silicone adhesive tape with extremely low electrostiatic discharge properties. Antistatic properties is in back adhesive side.
Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal form SUS. Conventional polyimide tape typically generate over 10,000volts during use which can damage around electronic components . The low static properties can eliminate circuit board degradation.
Product Features
* Silicone adhesive
* Withstands high temps (260℃/ 500 F)
* Dielectric properties
* Conformable to uneven surfaces
* No residue even after exposure to high temperatures or chemicals
Product Parameter
| Name | Polyimide Tape |
| Material | Polyimide tape |
| Color | Brown |
| Thickness | 0.03-0.18mm,customized |
| Width | 2mm-500mm |
| Length | 33m or custom |
| Adhesive | silicone |
| Short-term temperature resistance | >300℃ |
| long-term temperature resistance | >260℃ |
| Break down voltage | 1000-10000v |
| Usage | Insulation Protection,electric cables ,electromagnetic wires and motor,Transformer, PCB board, motor, capacitor, peripheral requirements of electronic products |
Product application
1.Can be used for higher requirement of H class motor and transformer coil insulation bandaging,
2.Capacitance and wire entanglement and other binding under the working conditions of high temperature insulation, antistatic. In circuit board manufacturing industry can be used for the electronic protection paste,
3.Especially suitable for SMT and heat-resistant protect gold finger, electronic switches, PCB protection, electronic transformers, relays, etc all kinds of high temperature resistance and moisture protection of electronic components.
4.Metal material heat spray paint, sandblasting surface protection coating cover, after high temperature paint baking, no residue leaving easy tear., with high temperature resistance, high tensile strength, good chemical resistance, no residue, comply with ROHS environmental protection,etc.
kaptone polyimide tape
kaptone polyimide tape application
|
|
