Model Number : | RY-01 |
Brand Name : | YAHEA |
Certification : | ROHS. SGS |
Price : | Negotiation |
Payment Terms : | Negotiation |
Supply Ability : | Negotiation |
Delivery Time : | Negotiation |

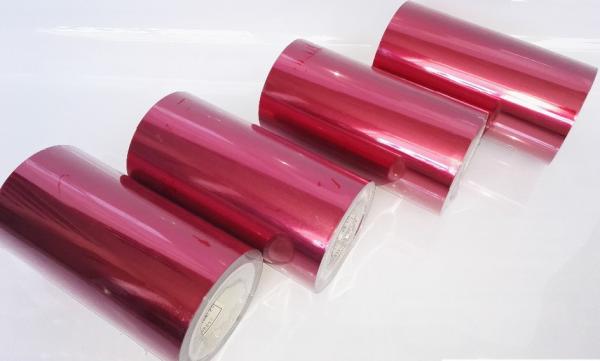

PET color film has passed the ROHS, SGS test.
Main characteristics:
1. Insulation,
2. excellent electric properties,
2. good tensile strength,
3. good dimension stability,
4. good aging resistance,
6. good heat resistance,
7. good compound process ability,
8. color uniformity.
PET color film is widely used in applicable to protection , Special
Tape,printing etc.
Items | Units | Typical Values | Testing Methods | |||||
Thickness | um | 50 | 75 | 100 | 125 | 150 | DIN-53370 | |
Tensile Strength | MD | Mpa | 175 | 175 | 175 | 170 | 170 | GB12802.2-2004 |
TD | Mpa | 200 | 200 | 200 | 197 | 197 | GB12802.2-2004 | |
Elongation At Break | MD | % | 120 | 125 | 130 | 130 | 130 | GB12802.2-2004 |
TD | % | 105 | 105 | 110 | 110 | 115 | GB12802.2-2004 | |
Shrinkage 150℃,30min | MD | % | 1.3 | 1.3 | 1.1 | 1.0 | 1.0 | GB12802.2-2004 |
TD | % | 0 | 0 | 0 | 0 | 0 | GB12802.2-2004 | |
Haze | % | 3.8 | 4 | 5.2 | 6.1 | 6.3 | GB2410-8 | |
Light Transmittance | % | 55 | 52.5 | 50 | 50 | 50 | GB2410-80 | |
Corona treatment intensity | Treatment surface | Dyn/cm | 52 | ASTM D2578 | ||||
None treatment surface | 44 |
![]() |
